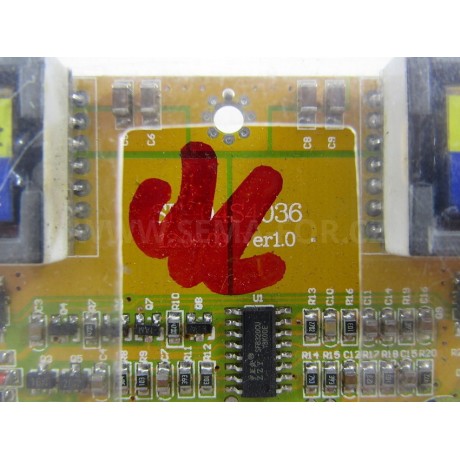

Inverter SF-04S4036 4lamps 12V LCD

Kód: 8010-3403

Condition: New

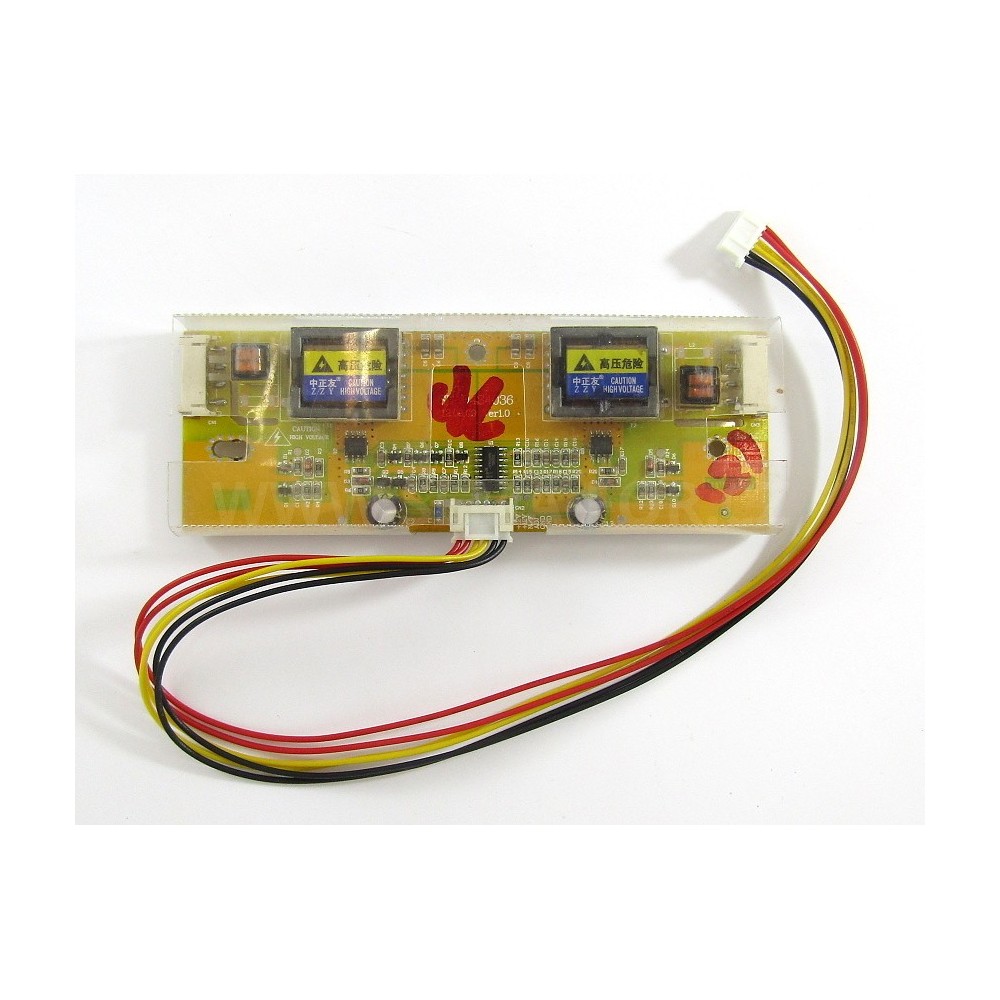

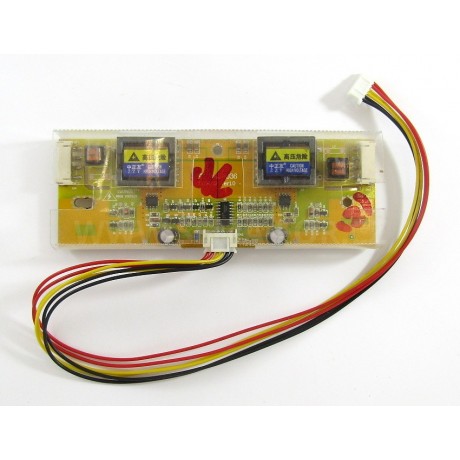

inverter module for backlighting LCD monitors

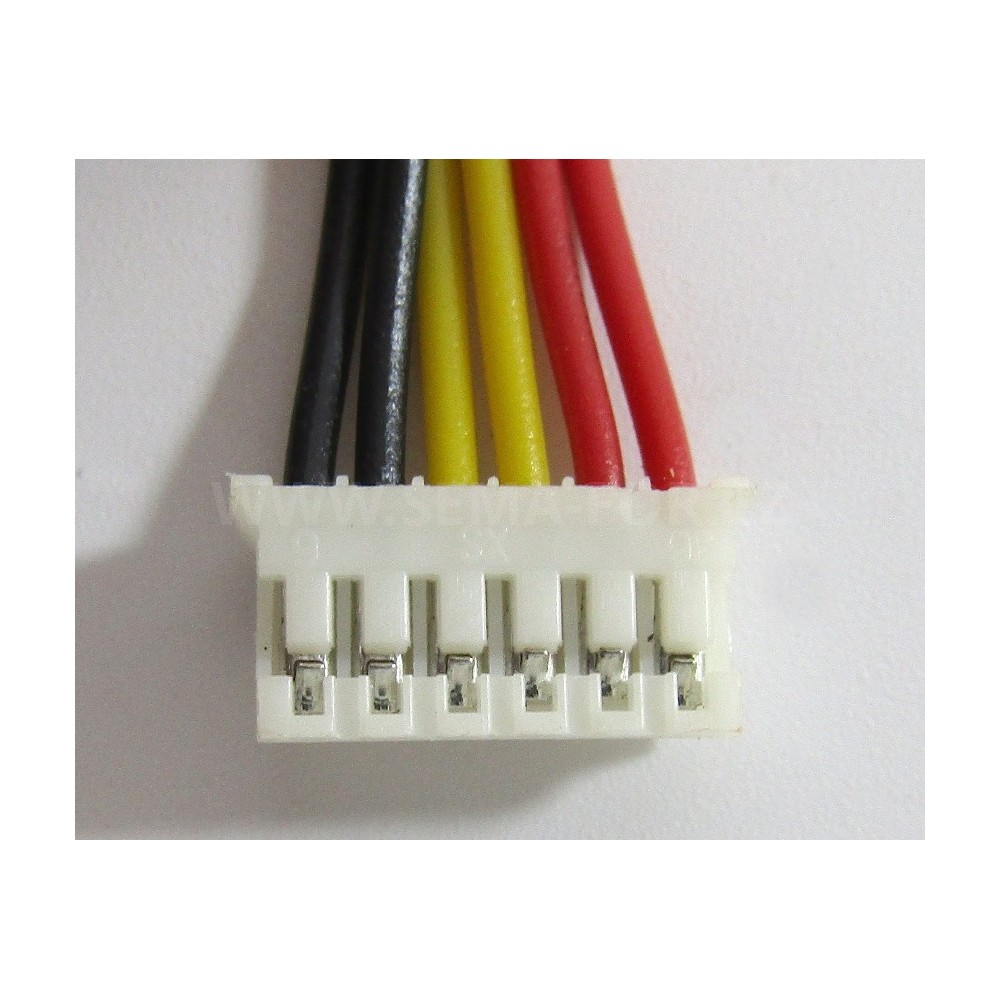

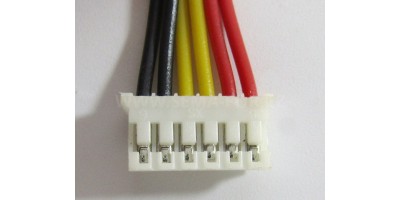

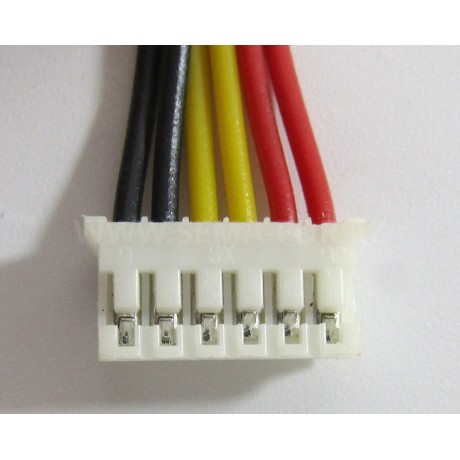

The cable to the 6-6 pin inverter is sent free of charge with the inverter

Kč229 s DPH
Kč189 bez DPH
Quantity
Not in stock

  • Našli jste lepší cenu?
  • Našli jste lepší cenu?

    * Povinná pole

    Odpovíme vám co nejdříve, zpravidla během pár hodin.

    Zavřít nebo

    help_outlineZaslat dotaz

    - power supply: + 10.8-13.2V , brightness control (0-5V), ON / OFF (5V / 0V)
    -output for 4 fluorescent LCD backlight
    -input connector: 6-pin connector (1-2 12V in, 3-ON / OFF, 4-ADJ, 5-6 GND)

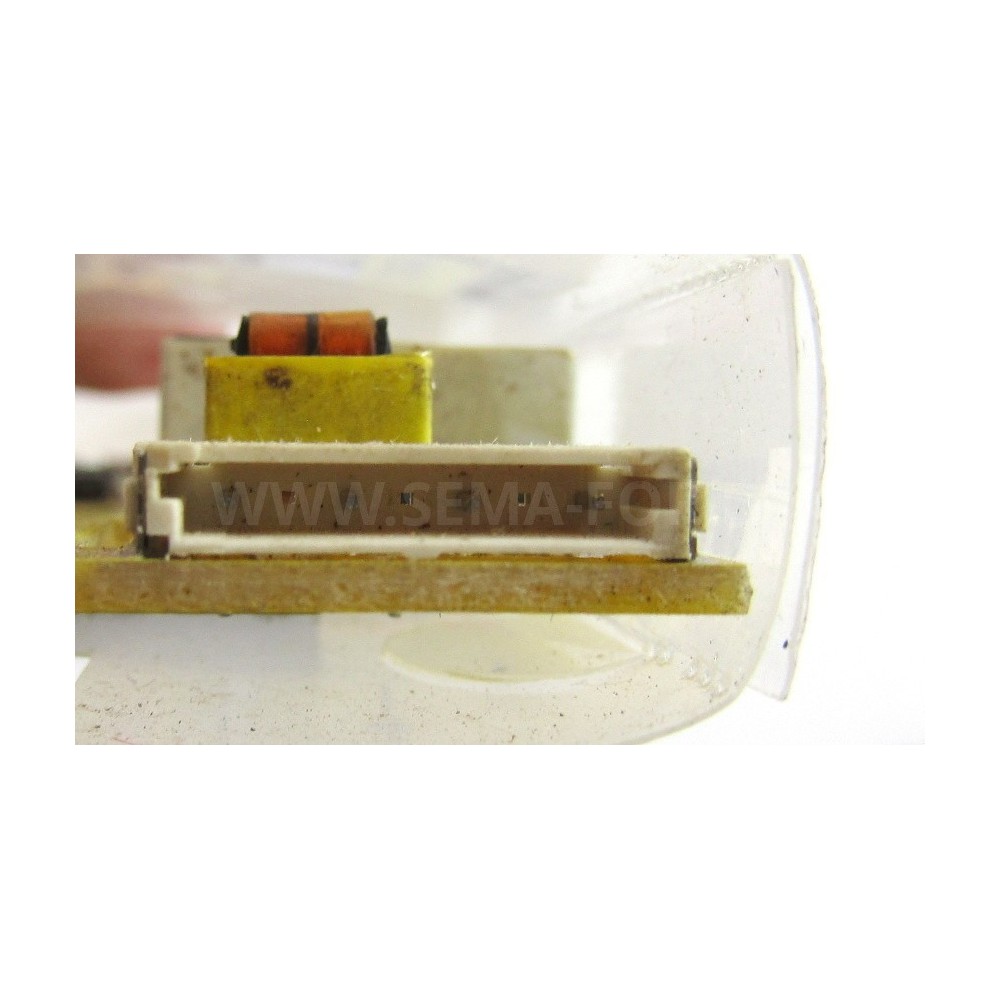

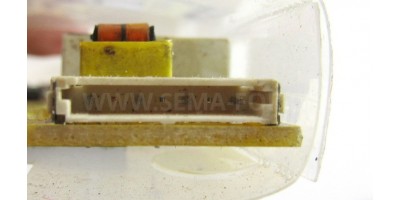

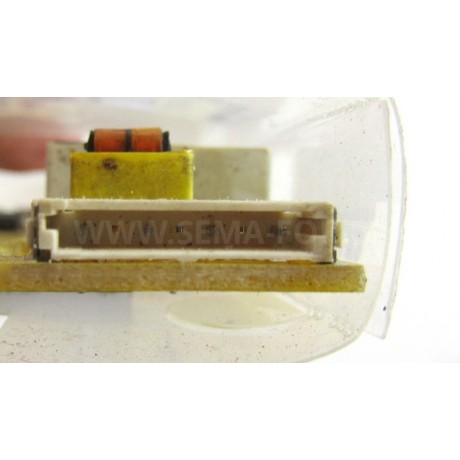

    -output connector: 2x "atypical" 4-pin connector (see picture)
    -dimensions: 134x45x14mm
    -weight: approx. 49g
