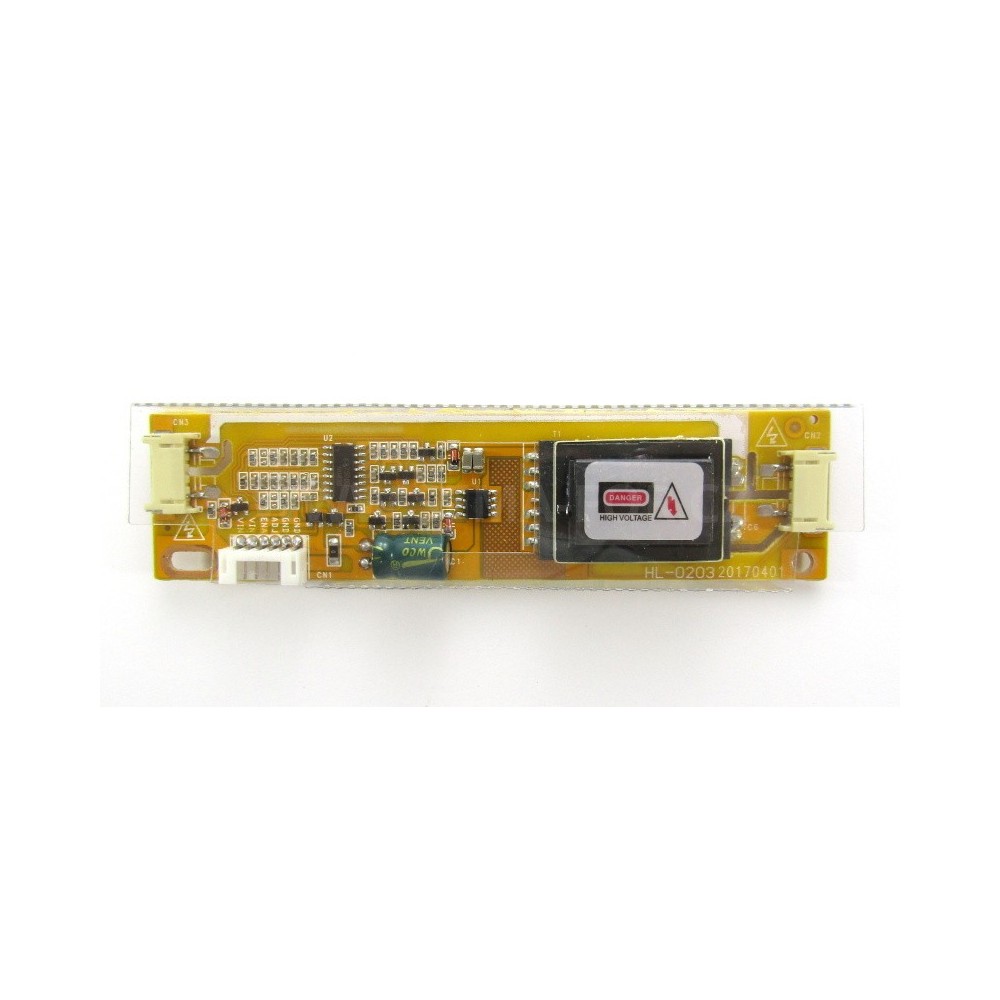

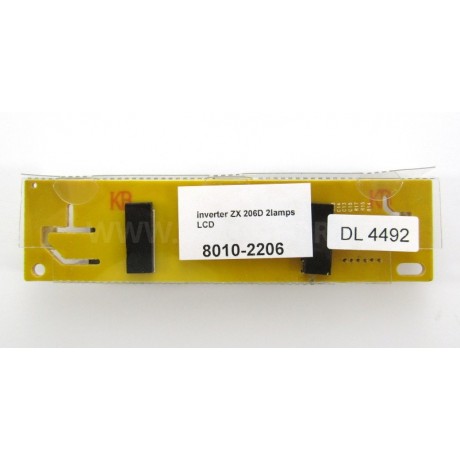

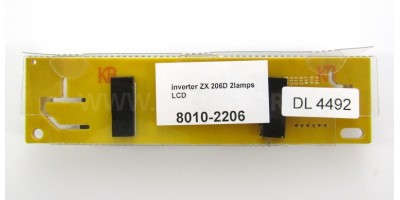

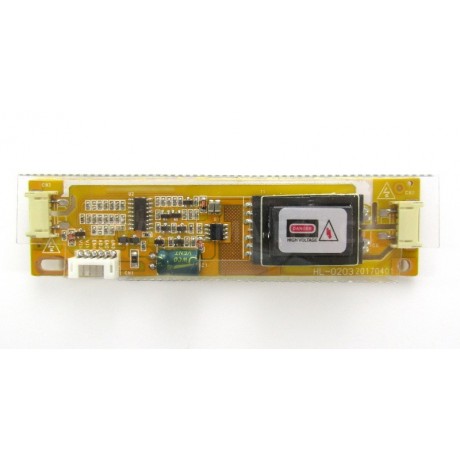

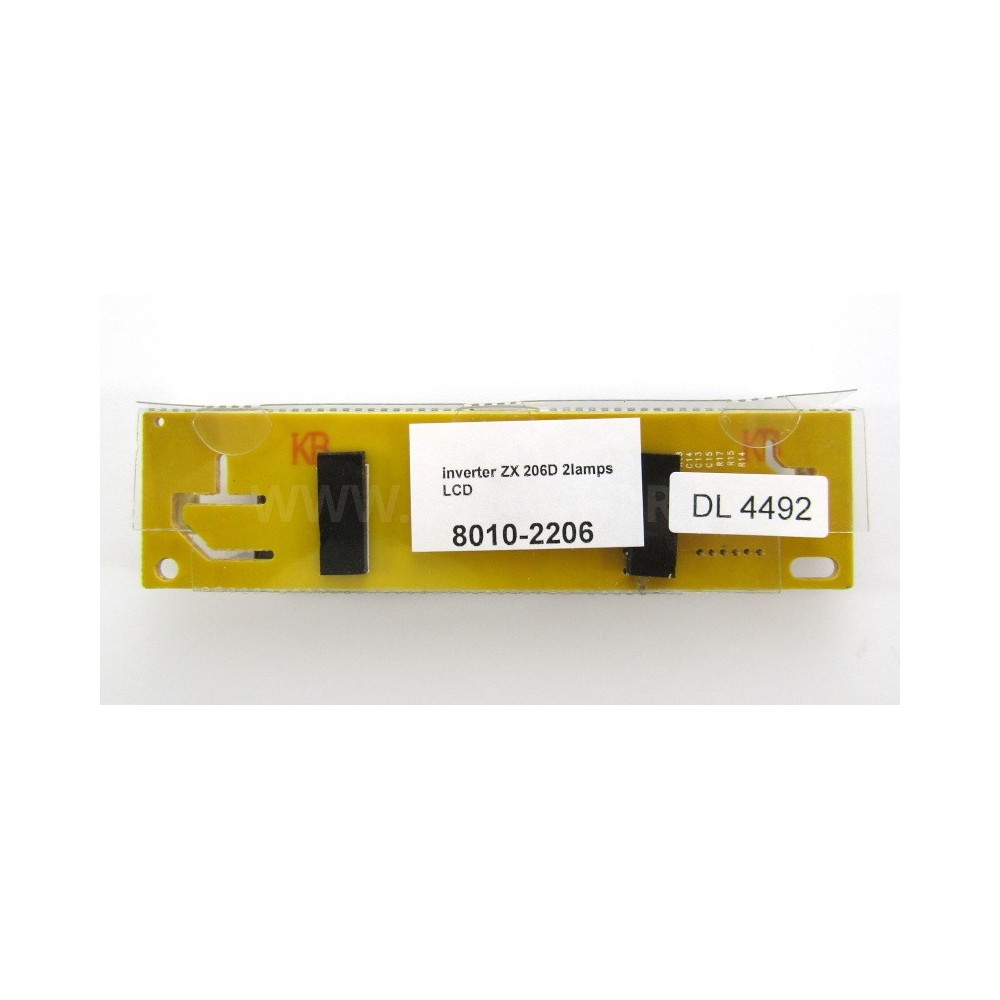

Inverter ZX206D for LCD

Kód: 8010-2206

Condition: New

inverter module for repairing the backlight of LCD monitors, two-lamp with wide connectors for fluorescent lamps


Kč157 s DPH
Kč130 bez DPH
Quantity
Not in stock

  • Našli jste lepší cenu?
  • Našli jste lepší cenu?

    * Povinná pole

    Odpovíme vám co nejdříve, zpravidla během pár hodin.

    Zavřít nebo

    help_outlineZaslat dotaz

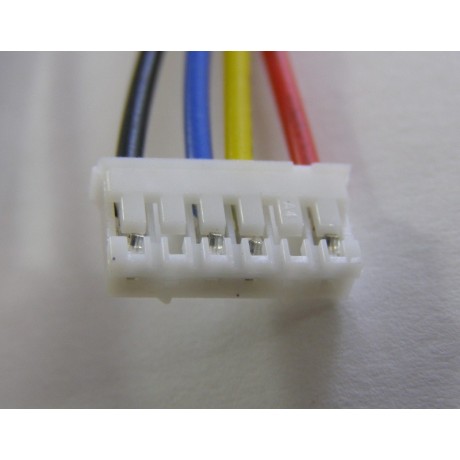

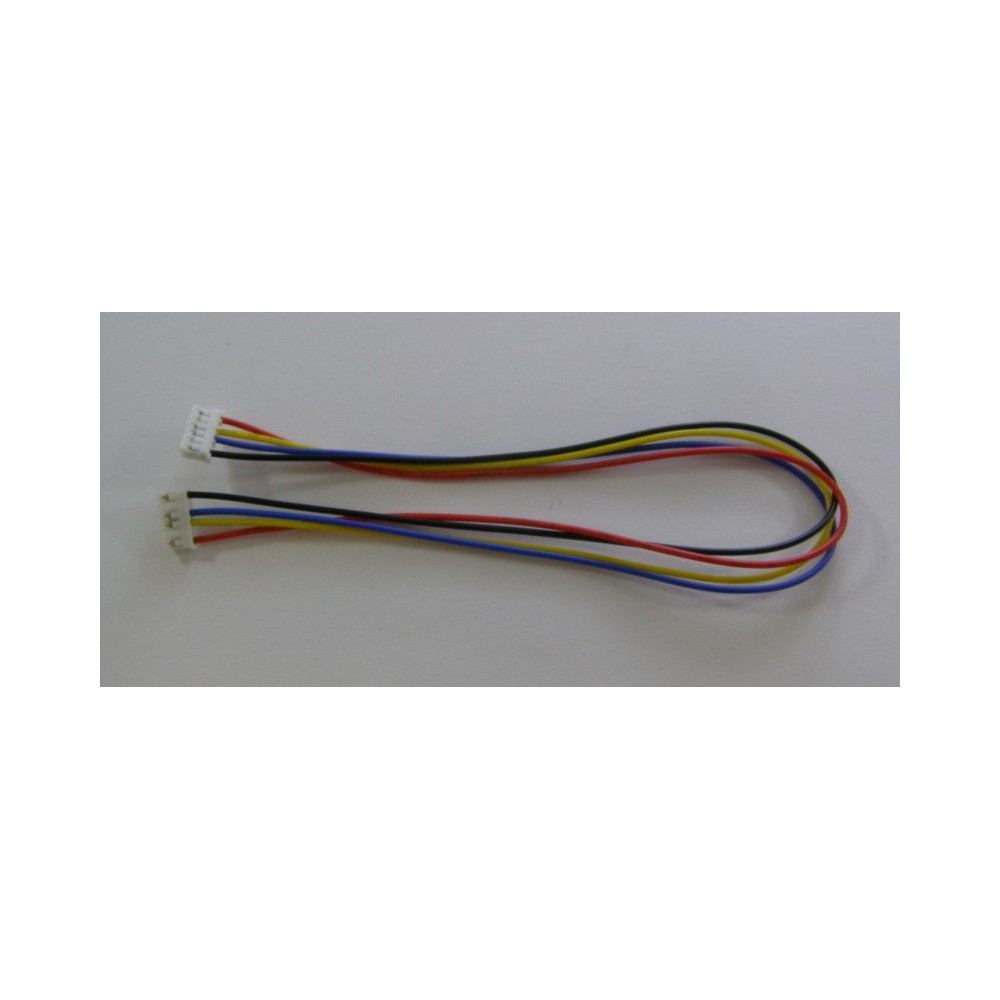

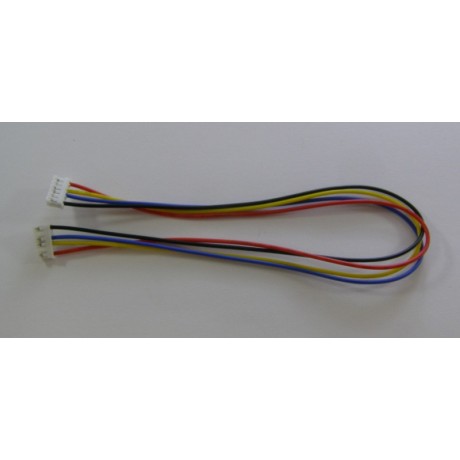

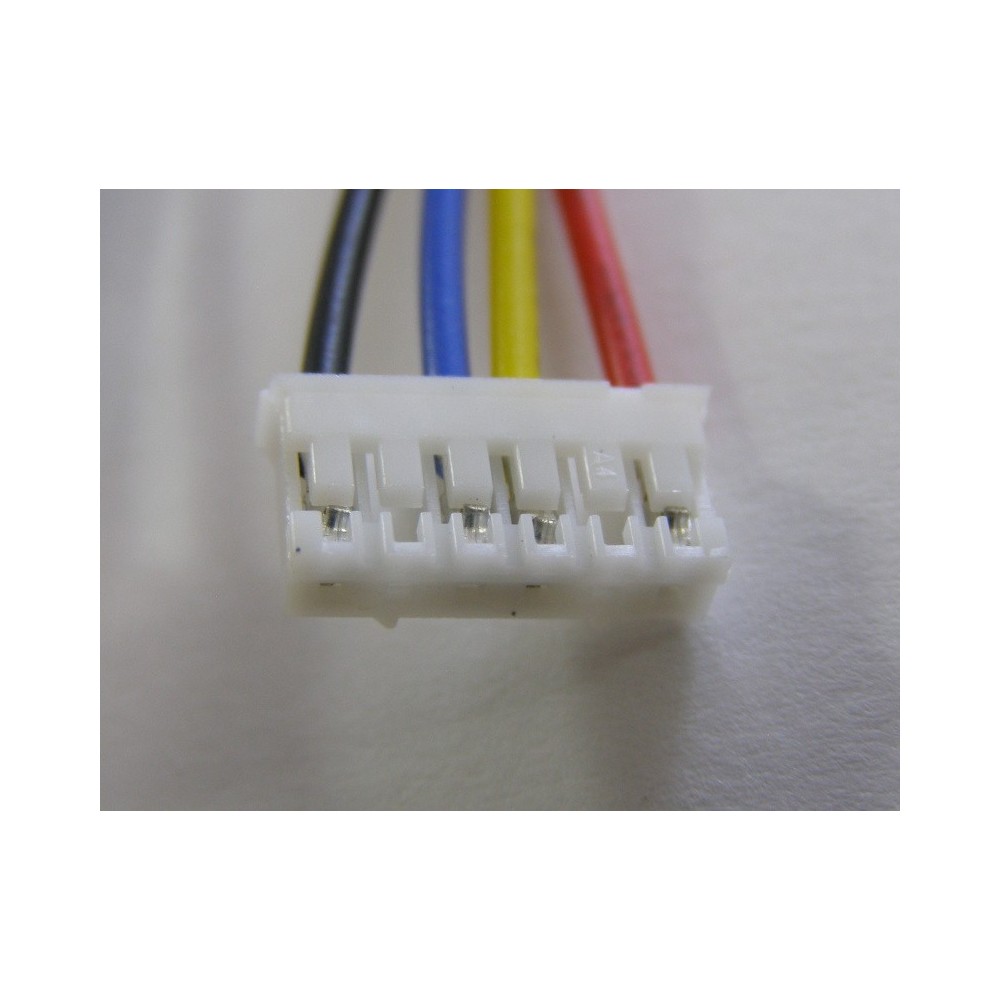

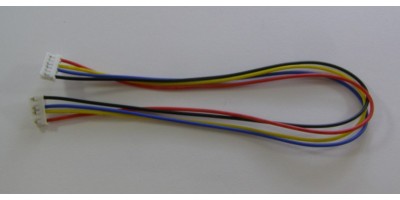

    The cable to the 5-6 pin inverter is sent free of charge with the inverter
    - power supply: + 12V , brightness control (0-5V), ON / OFF (5V / 0V)
    -output for 2 fluorescent LCD backlight

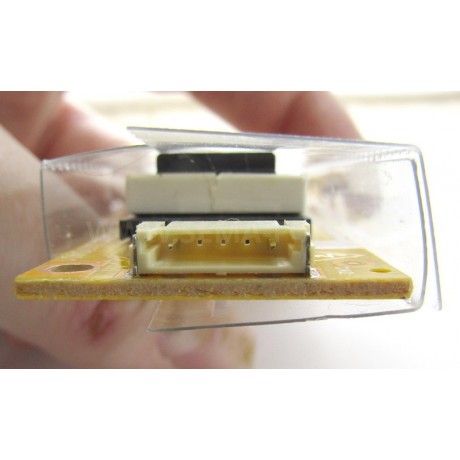

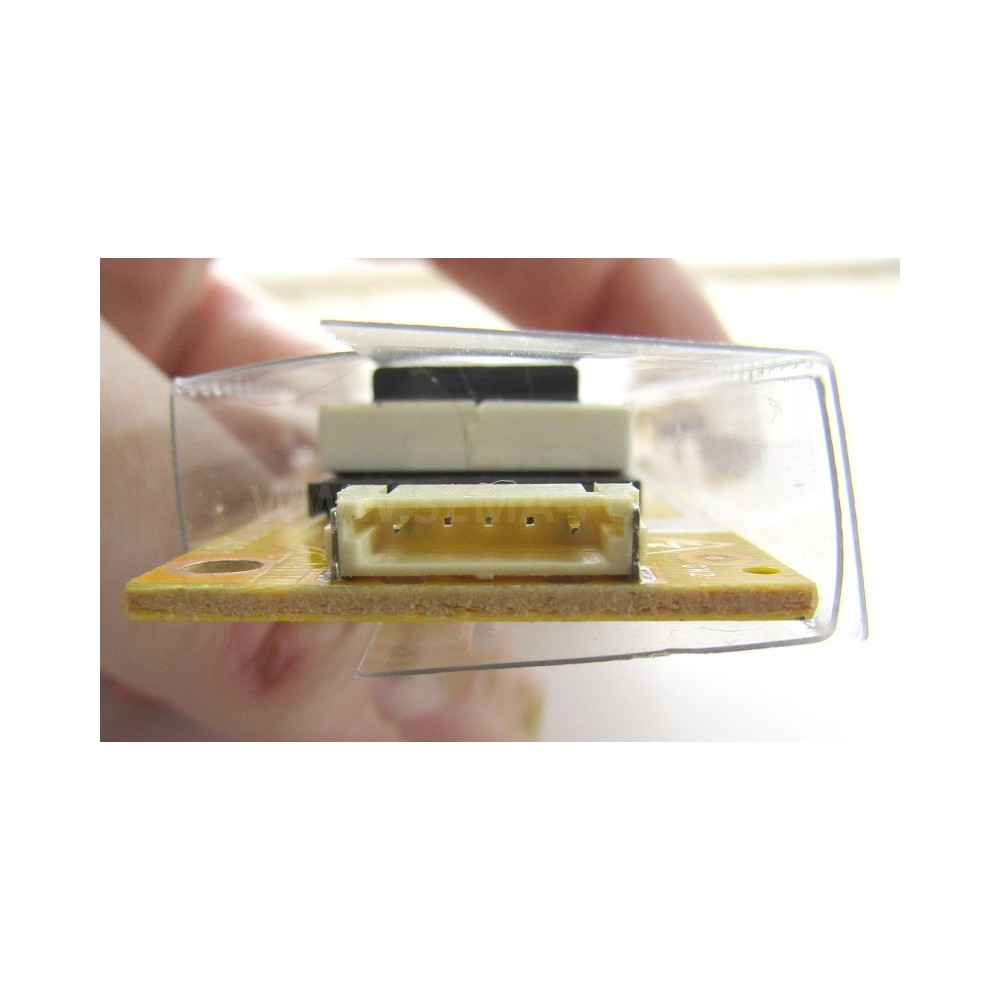

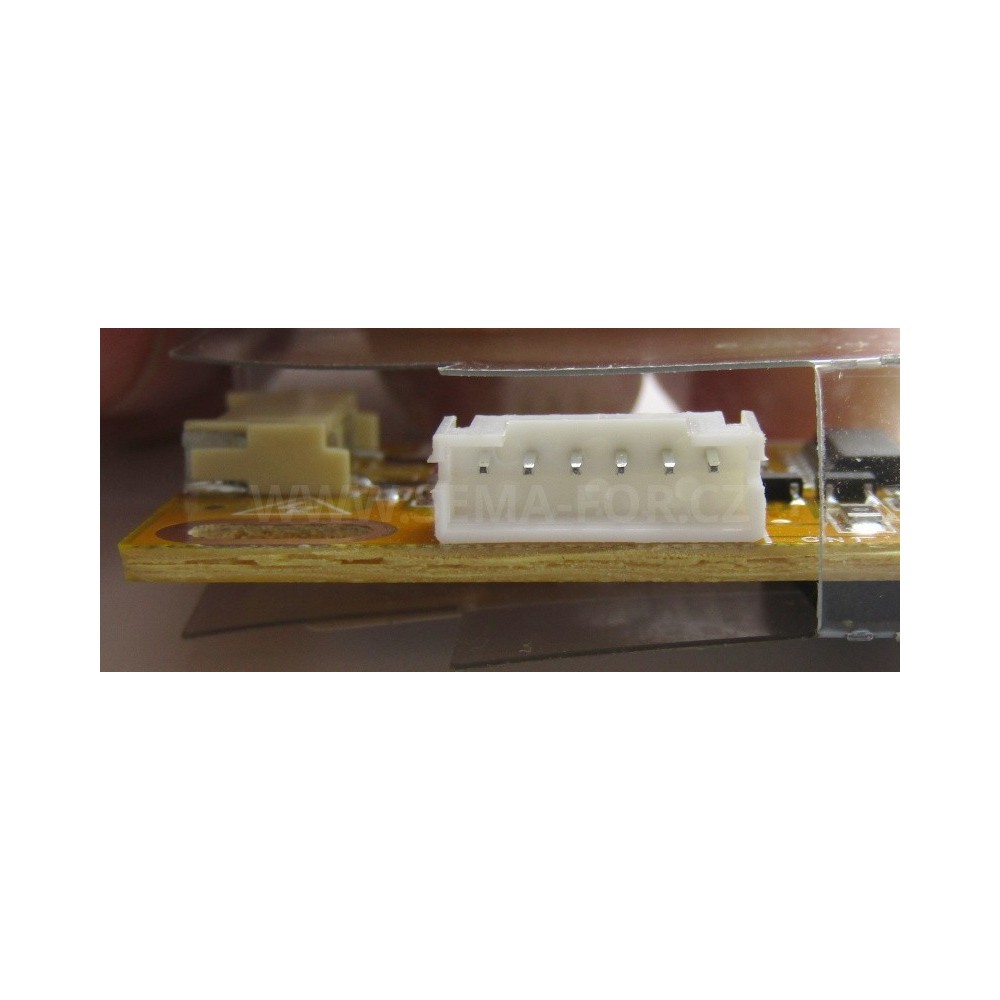

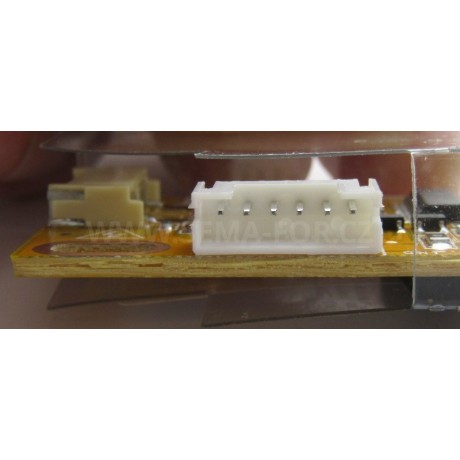

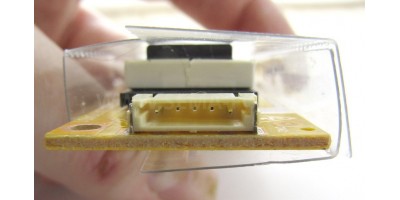

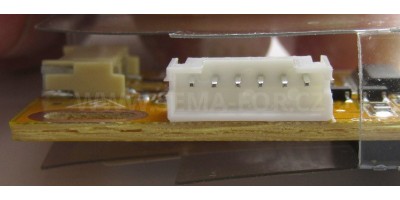

    -input connector: 6-pin connector (1,2-VCC, 3-ON / OFF, 4-ADJ, 5,6-GND)
    -output connector: 2x "wide" 2-pin connector (see picture)
    -dimensions: 120x30x12mm
    -weight: 27g
    -warranty: 12 months

    8010-2206
    New
